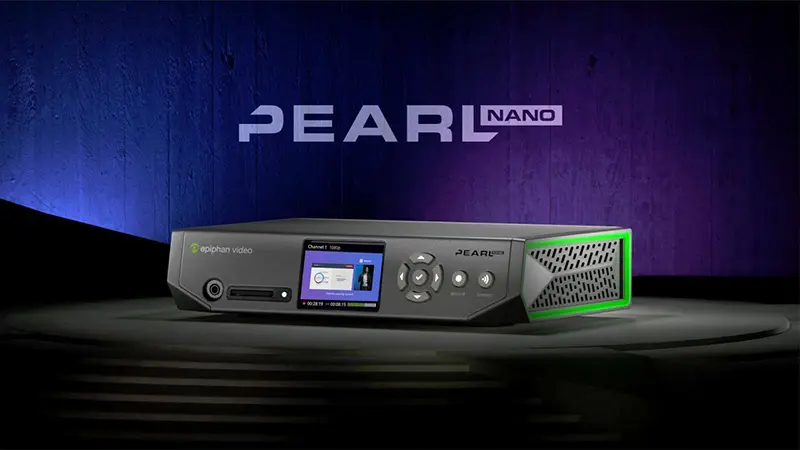

Epiphan Pearl Nano Portable Hardware Encoder for Streaming & Recording, Portable, 4K, 2 inputs, Single-channel Encoder
With Pearl Nano your virtual, onsite, or hybrid event is in good hands. Through the convenience of Epiphan Edge you can confidently monitor & control your Nano from wherever you need to.
| Brand: | Epiphan |
|---|---|
| Model: | Pearl Nano |
| Video Inputs: | 1× HDMI™, 1× 12G SDI |
| Audio Inputs: | 2× XLR line level, 1× USB, 1× SDI, 1× HDMI, 1× RCA |
| Ethernet Ports: | 10/100/1000 Ethernet Port |
Request a Quotation
Epiphan Pearl Nano™ Portable Hardware Encoder Specifications:
- Manufacturer: Epiphan Video
- Model: Pearl Nano
- Part Number: ESP1610
- Video Inputs:
- Connectors: 1 × HDMI™, 1 × 12G SDI
- Network inputs: SRT and RTSP
- Audio Inputs:
- Connectors: 2× XLR line level (stereo pair or 2 mono), 1× USB, 1× SDI, 1× HDMI, 1× RCA
- Audio Gain Control: 0 dB to +30 dB
- Video Outputs: 1× HDMI pass-through, 1× HDMI program out
- Video Encoding: H.264/AVC, H.265/HEVC, 4:2:0, Up to 1920 × 1200; 4K with paid upgrade
- Streaming Protocols: RTMP/RTMPS, SRT, HLS, MPEG-DASH, RTSP, MPEG-TS, UPnP
- Encoded Programs: 1× 1080p program at 60 fps (with up to 2 FHD sources); 1× 4K program at 30 fps (with up to 2 4K sources)
- Audio Encoding: MP3, PCM, and AAC (sampling 16 to 48 kHz with bitrate up to 320 kbps)
- Network: 1 × 10/100/1000 Ethernet port (RJ45)
- Storage:
- SD Card: Up to 512 GB EXT4
- Internal Storage: SATA M.2 2280 SSD (M Key connector)
- Local USB: Automatic or manual copy via 1 USB 3.0 port
- Network Storage: FTP, SFTP, SCP, RSYNC, CIFS, AWS, or WebDav servers
- Recording Formats: AVI, MP4, MOV, or MPEG-TS
- Control: Admin panel, front screen and control keys, remote login, HTTP, and RS-232 APIs
- Dimensions ( W × D × H ): 206 mm x 149 mm x 41 mm, (907 g)
The Pearl Nano offers the ultimate blend of portability and versatility with a refined yet robust feature set that includes ingestion, encoding, HDMI pass-through, and recording. Streamline your setup with the ability to directly connect HDMI and SDI video sources and XLR, RCA, or USB audio to Nano along with Power over Ethernet Plus (PoE+). For zero-latency display of video sources on in-room monitors, Nano also features a built-in HDMI pass-through.
Epiphan Pearl Nano™ Edge Encoder for Streaming and Recording Key Features:
Monitoring & Config
Use the front screen for basic configuration/control and confidence monitoring.
4K Streaming & Recording
Upgrade your device with the
optional feature add-on.
Custom Layout Builder
Enhance your video program with a
tailored layout.
HDMI & SDI Video Inputs
Directly connect HDMI and/or SDI
video sources to Nano.
HDMI Pass-through
Display video sources on in-room monitors with zero latency.
H.265/HEVC Compression
Halve your file sizes and halve your bandwidth use.
SRT Encoding & Decoding
Stream via SRT or use as a compact SRT contribution encoder.
XLR, RCA, and USB Audio
Connect professional audio equipment with line-level XLR.
Seamless Integrations
The most flexible recording and streaming appliance for automating video in any space.
Integrate your Pearl into any Crestron space using the Crestron-developed Control Module
Bring streaming and recording to any Q-SYS space with the secure Q-SYS plugin for Pearl
Pearl Mini is the most capable streaming and recording system that integrates with Extron
Sync all of your recordings to your Panopto folders automatically
Streamline your YuJa video workflows with Pearl hardware
Streamline your YuJa video workflows with Pearl hardware
Bring ease of use and wider adoption of your Kaltura CMS with automated video capture
Automate EchoVideo lecture capture with flexible, multi-source recording
Epiphan Pearl Nano™ Portable Hardware Encoder Resources:
View PDF
Shipping & Delivery:
- All orders are shipped from our headquarters in KSA.
- The delivery time for your ordered items depends on various factors, including the shipping method chosen, the destination location, and any customization procedures.
- Once your order is placed, we will provide you with an estimated delivery timeframe.
Return & Refund:
- Our policy allows our customers to return the products within 14 days of receipt; the product must be in the same condition as you received it.
- Please submit the purchase receipt in order to complete your return process.
- Our refund policy ensures that you receive a full refund for any eligible returns made within the specified time frame and conditions mentioned in our return policy.
- For more details, please review our Full Returns & Refunds Policy.
